PRODUCTS
 |

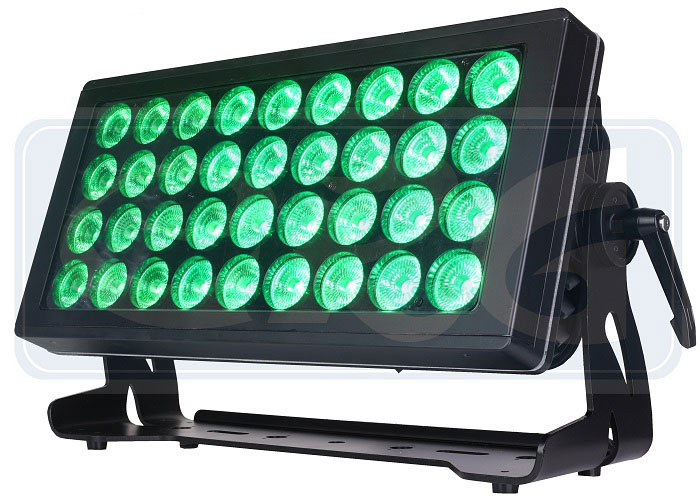

ER-W43261 Six waterproof lights
Architectural / landscape
PRODUCT DETAILS
All-aluminum structure, stylish delicate and elegant, easy to install. Uses 36 12W Six RGBWA + UV LED as the light source, the light beam angle of 250, each light source can be individually controlled, rational layout so that the projected LED spot more uniform mixing more pure, spot farther. Suitable for a variety of indoor and outdoor performances and large-scale buildings, and other outdoor lighting flood light projection. In addition to DMX control has a powerful RDM control technology.
Optics
LED type: single 12W Six RGBWA + UV LED;
Light beam angle: 250;
Average life expectancy: ≥50,000H;
Colour
Uniform RGBWA + UV color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
12 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: six kinds of channel mode (2/3/6/8/12/20/24);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Waterproof pentandra XLR input / output;
Display: 0802LCD display operation panel;
software
Optics
LED type: single 12W Six RGBWA + UV LED;
Light beam angle: 250;
Average life expectancy: ≥50,000H;
Colour
Uniform RGBWA + UV color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
12 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: six kinds of channel mode (2/3/6/8/12/20/24);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Waterproof pentandra XLR input / output;
Display: 0802LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Mute waterproof fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum die-casting structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 435W;
other
Protection class: IP65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 559mm * 171mm * 288mm;
NW: 16kgs;
Mute waterproof fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum die-casting structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 435W;
other
Protection class: IP65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 559mm * 171mm * 288mm;
NW: 16kgs;
