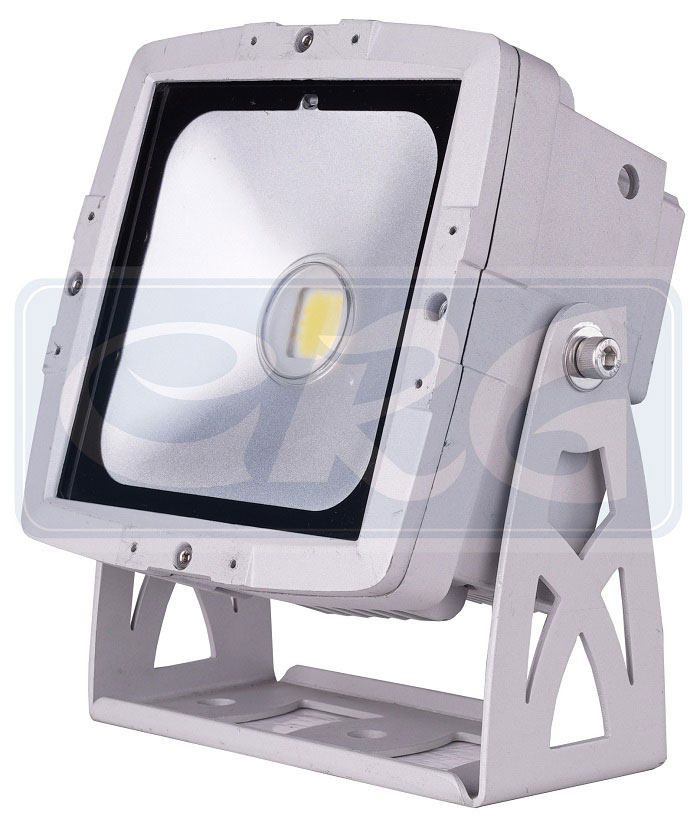

ER-F5002 Warm white waterproof lamp
Architectural / landscape
PRODUCT DETAILS
All-aluminum structure, no fan, depending on the nature of aluminum alloy radiator cooling, absolutely silent mode design, delicate and elegant appearance of the structure. Single high-power 50W warm white LED light source, the light beam angle 1200, so powerful features make it ideal for lighting small and medium sized performances, theater, exhibitions, landscape lighting and other places of choice. In addition to DMX control has a powerful RDM control technology.
Optics
LED type: single 50W warm white LED;
Light beam angle: 1200;
Average life expectancy: ≥50,000H;
Colour
Color temperature: 3200K;
effect
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: two kinds of channel mode (1/2);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: waterproof three core wire port XLR input / output;
Display: 0802 LCD display operation panel;
software
Optics
LED type: single 50W warm white LED;
Light beam angle: 1200;
Average life expectancy: ≥50,000H;
Colour
Color temperature: 3200K;
effect
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: two kinds of channel mode (1/2);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: waterproof three core wire port XLR input / output;
Display: 0802 LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 63W;
other
Protection class: IP 65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 220mm * 147mm * 239mm;
NW: 3.2kgs;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 63W;
other
Protection class: IP 65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 220mm * 147mm * 239mm;
NW: 3.2kgs;
