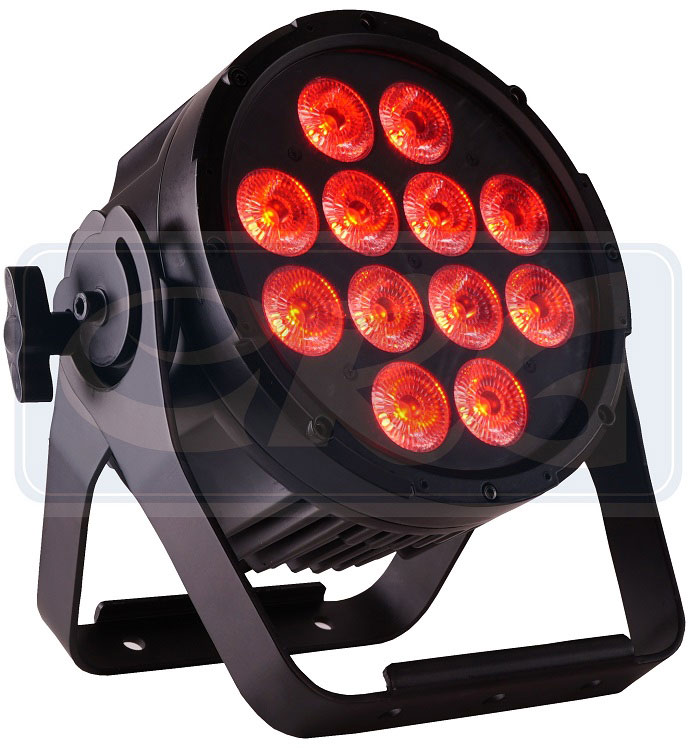

ER-C14461 Six waterproof lights
Architectural / landscape
PRODUCT DETAILS
All-aluminum structure, no fan, depending on the nature of aluminum alloy radiator cooling, absolutely silent mode design, modeling lightweight fashion, easy to install. 12 Six RGBWA + UVLED 12W as the light source, the light beam angle of 150, with a variety of mixed color combination, so powerful that it becomes large-scale theatrical performances, an ideal stage lighting, background staining, dance halls, bars, landscape lighting and other places lamp selection. In addition to DMX control has a powerful RDM control technology.
Optics
LED type: single 12W Six RGBWA + UV LED;
Light beam angle: 150;
Average life expectancy: ≥50,000H;
Colour
Uniform RGBWA + UV color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
4 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming Mode: Five;
Control and Programming
Control channel: four kinds of channel mode (6/7/8/12);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: waterproof three core wire port XLR input / output;
Display: 0802 LCD display operation panel;
software
Optics
LED type: single 12W Six RGBWA + UV LED;
Light beam angle: 150;
Average life expectancy: ≥50,000H;
Colour
Uniform RGBWA + UV color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
4 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming Mode: Five;
Control and Programming
Control channel: four kinds of channel mode (6/7/8/12);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: waterproof three core wire port XLR input / output;
Display: 0802 LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Power Rating: 150W;
other
Protection class: IP 65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 297mm * 158mm * 290mm;
Weight: 5.7 kgs;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Power Rating: 150W;
other
Protection class: IP 65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 297mm * 158mm * 290mm;
Weight: 5.7 kgs;
