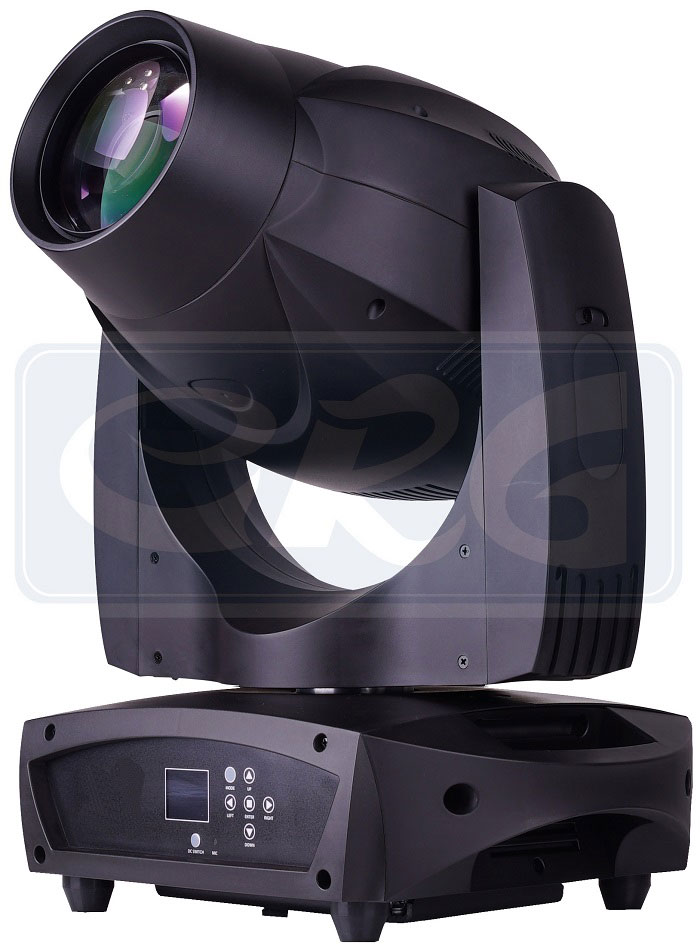

R-M180SB Moving Head beam lamp
Entertainment Lighting
PRODUCT DETAILS
Using single super power 180W LED cool white light source lamp beads, large angle range 40-200 zoom, horizontal and vertical three-phase motor response fast and smooth, brilliant dynamic effects dish, balanced color conversion, making it ideal for stage lighting lighting choice. In addition to DMX control has a powerful RDM control technology.
Optics
LED type: single super power 180W LED cold white lights beads;
Light beam angle: 40-200;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
X axis scanning: 5400 or 6300 (8bit / 16bit precision scanning);
Y-axis scanning: 2700 (8bit / 16bit precision scanning);
Colour
A color wheel 14 fixed colors + white;
effect
A fixed gobo wheel: 12 gobos + 4 white circle;
A rotating gobo wheel: 9 gobos + white plug-round, with a pattern jitter, pattern rotation;
A rotating prism plate: three prism sheet + white circle, with a rotating prism;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming curve: four kinds;
Control and Programming
Optics
LED type: single super power 180W LED cold white lights beads;
Light beam angle: 40-200;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
X axis scanning: 5400 or 6300 (8bit / 16bit precision scanning);
Y-axis scanning: 2700 (8bit / 16bit precision scanning);
Colour
A color wheel 14 fixed colors + white;
effect
A fixed gobo wheel: 12 gobos + 4 white circle;
A rotating gobo wheel: 9 gobos + white plug-round, with a pattern jitter, pattern rotation;
A rotating prism plate: three prism sheet + white circle, with a rotating prism;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming curve: four kinds;
Control and Programming
Control Channel: Three-channel mode (17/19/20);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 230W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 369mm * 288mm * 583mm;
Net weight: 18 kgs;
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 230W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 369mm * 288mm * 583mm;
Net weight: 18 kgs;
