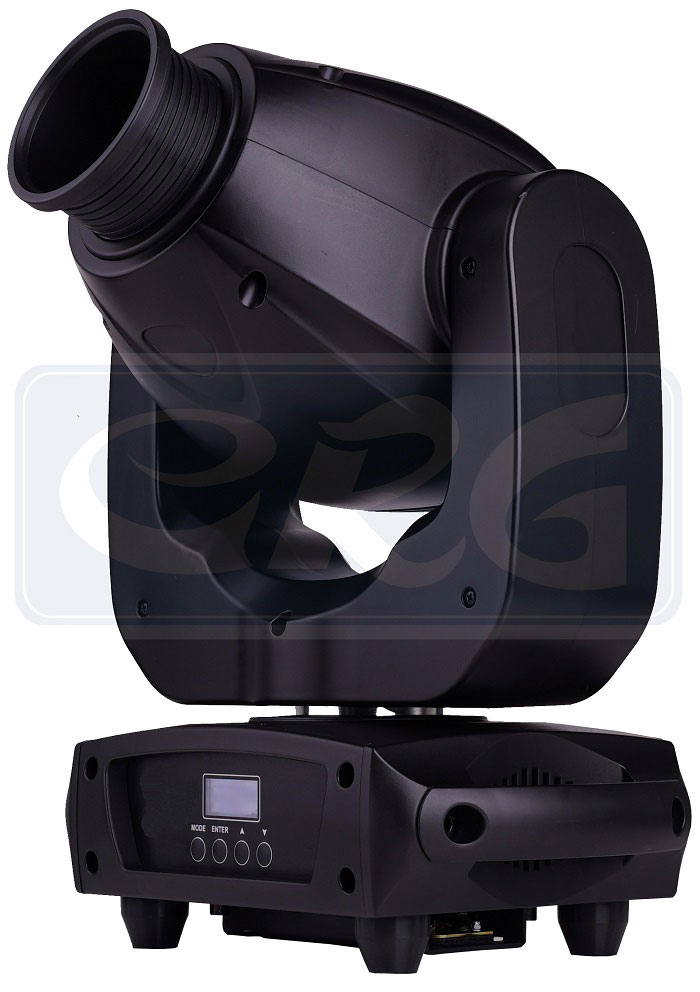

R-M100S Moving Head Light
Entertainment Lighting
PRODUCT DETAILS
Using single super power 100W LED cool white light beads as the light source, the light beam angle 120, horizontal, vertical three-phase motor response fast and smooth, brilliant dynamic effects dish, balanced color conversion, unique prism effect, with a strong beam, producing 3D effect, there is a strong addition to DMX control of RDM control technology.
Optics
LED type: single super power 100W LED cold white lights beads;
Light beam angle: 120;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
X axis scanning: 5400 (8bit / 16bit precision scanning);
Y-axis scanning: 2700 (8bit / 16bit precision scanning);
Colour
A fixed color wheel 8 colors + white;
effect
A rotating gobo wheel: 6 gobos + white plug-round, with a pattern jitter, pattern rotation;
A rotating prism plate:: a prism sheet with prism rotation;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming curve: four kinds;
Control and Programming
Optics
LED type: single super power 100W LED cold white lights beads;
Light beam angle: 120;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
X axis scanning: 5400 (8bit / 16bit precision scanning);
Y-axis scanning: 2700 (8bit / 16bit precision scanning);
Colour
A fixed color wheel 8 colors + white;
effect
A rotating gobo wheel: 6 gobos + white plug-round, with a pattern jitter, pattern rotation;
A rotating prism plate:: a prism sheet with prism rotation;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming curve: four kinds;
Control and Programming
Control channel: two kinds of channel mode (11/14);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 135W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 293mm * 171mm * 433mm;
Weight: 8.8 kgs;
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 135W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 293mm * 171mm * 433mm;
Weight: 8.8 kgs;
