PRODUCTS
 |

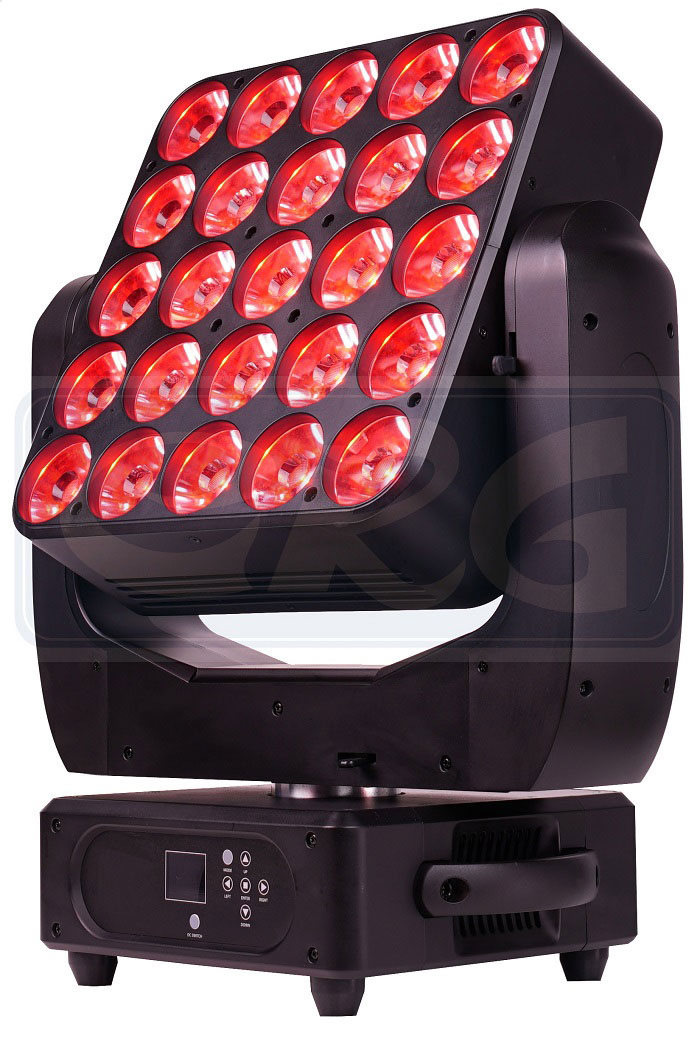

R-C37541 Four shaking his head lamp matrix
Entertainment Lighting
PRODUCT DETAILS
Uses 25 15W RGBW Quad lamp beads as the light source, the light beam angle 40, each light source can be controlled individually, in combinations of three-dimensional space projected dynamic graphics, X and Y axes can be unlimited rotation, in addition to the DMX control but also have a strong RDM, art-Net, Kling-Net and other network control technology, with strong dynamic multi-directional beam can be manufactured very bright lighting graphical effects.
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 40;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
Unlimited X axis (8bit / 16bit precision scanning);
Y axis Unlimited (8bit / 16bit precision scanning);
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
9 kinds of built-in programs to choose from 27 kinds of graphics;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 40;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
Unlimited X axis (8bit / 16bit precision scanning);
Y axis Unlimited (8bit / 16bit precision scanning);
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
9 kinds of built-in programs to choose from 27 kinds of graphics;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: four kinds of channel mode (12/18/110/116);
Protocol: standard DMX512 protocol, RDM protocol, Art-net.Kling-net protocol;
Data Connection: Three core / pentandra XLR input / output, RJ45 network port input / output;
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "RIGHT" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 420W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ - 45 ℃;
size and weight
Lamp Size: 480mm * 260mm * 584mm;
Net weight: 18.6 kgs;
Protocol: standard DMX512 protocol, RDM protocol, Art-net.Kling-net protocol;
Data Connection: Three core / pentandra XLR input / output, RJ45 network port input / output;
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "RIGHT" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 420W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ - 45 ℃;
size and weight
Lamp Size: 480mm * 260mm * 584mm;
Net weight: 18.6 kgs;
