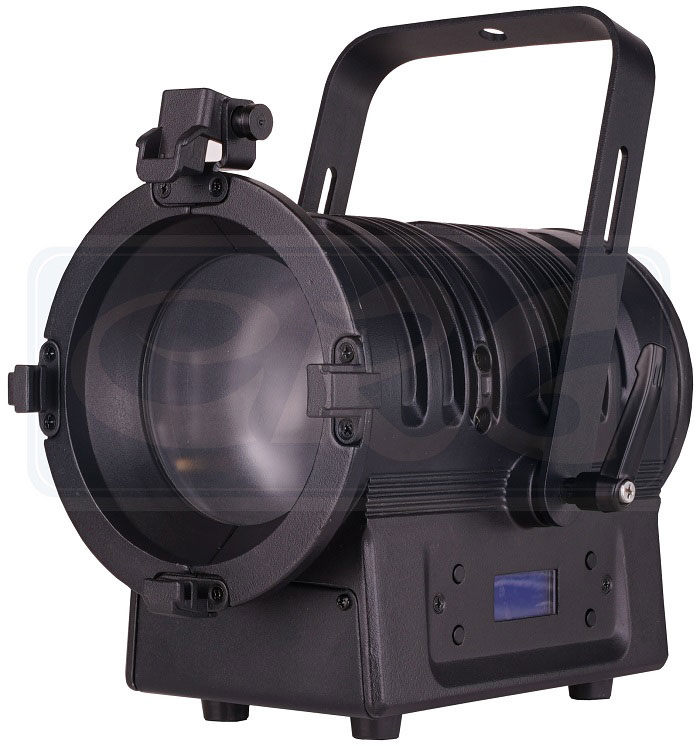

G-F5002 Warm white Spotlight
Stage lighting Television
PRODUCT DETAILS
Aluminum alloy structure, light body design, lightweight fashion. Using single 50W warm white LED light source, 100-500 large angle zoom range, projected spot uniformity, light cast farther. Suitable for a variety of indoor performances, commercial lighting, theaters, museums, galleries and other flood lighting projection. In addition to DMX control has a powerful RDM control technology.
Optics
LED type: single 40W warm white LED;
Light beam angle: 100-500;
Average life expectancy: ≥50,000H;
LED type: single 40W warm white LED;
Light beam angle: 100-500;
Average life expectancy: ≥50,000H;
Colour
Color Temperature: 3000K ~ 3200K;
effect
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Color Temperature: 3000K ~ 3200K;
effect
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: two kinds of channel mode (1/2);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core XLR input / output;
Display: 0802LCD display operation panel;
Control channel: two kinds of channel mode (1/2);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core XLR input / output;
Display: 0802LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum die-casting structure;
Power and power
Input voltage: AC100V ~ 240V, 50 / 60Hz;
Rated power: 60W;
Input voltage: AC100V ~ 240V, 50 / 60Hz;
Rated power: 60W;
other
Protection class: IP20;
Working environment: -15 ℃ ~ 45 ℃;
Protection class: IP20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 241mm * 196mm * 173mm;
Weight: 3.6 kgs;
Lamp Size: 241mm * 196mm * 173mm;
Weight: 3.6 kgs;
